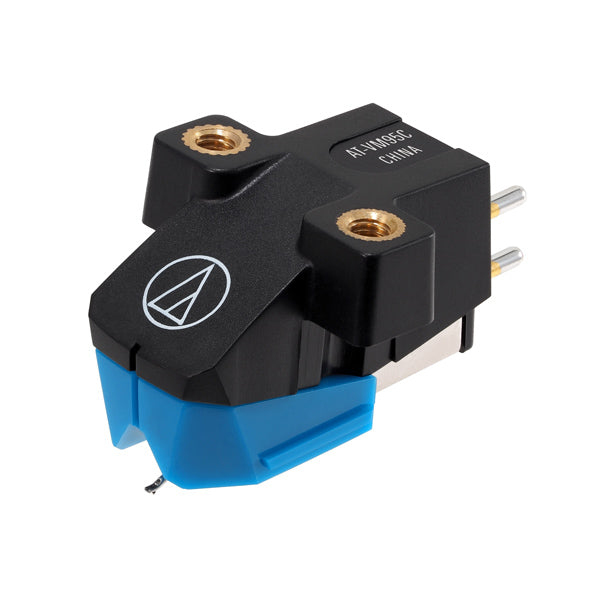

Audio-Technica VM95C
€39,00
Skip to product information
CARTRIDGE WITH CONICAL STYLUS
• Dual moving magnet
• Conical stylus
• Frequency response: 20 - 20,000 Hz
• Tracking force: 1.8 – 2.2 g (standard 2 g)
Type
VM Stereo Dual Magnet
Mounting
1/2” centres
Frequency response
20 - 20,000 Hz
Channel separation
18 dB (1 kHz)
Vertical tracking angle
23°
Stylus construction
Bonded Round Shank
Recommended load impedance
47,000 Ω
Coil impedance
3.3 kΩ (1 kHz)
DC resistance
485 Ω
Coil inductance
550 mH (1 kHz)
Output voltage
4.0 mV (@ 1 kHz, 5 cm/sec)
Channel balance
2.5 dB (1 kHz)
Stylus shape
Conical
Cantilever
Aluminium pipe
Static compliance
17 x 10 – 6 cm / dyne
Dynamic compliance
6.5 x 10 – 6 cm / dyne (100 Hz)
Dimensions
21.2 × 21.4 × 62.4 ( H x W x D mm)
Model
AT-VM95C/H
Recommended load capacitance
100-200 pF
Replacement stylus
AT-VMN95C
Stylus size
0.6 mil
Weight
15.5 g
